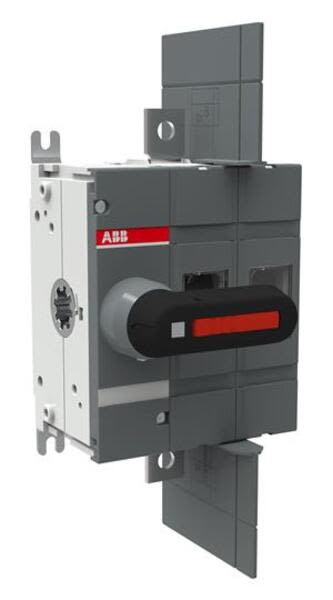

- Description: OTDC160E02K DC Switch-disconnector
- Product ID: 1SCA127735R1001
- Extended Product Type: 1SCA127735R1001
- Product Net Weight: 1.4 kg
- Product Net Width: 113 mm
- Product Net Height: 176 mm
- Product Net Depth: 107 mm
- Product Main Type: OTDC160
- Product Name: DC Switch-disconnector
- Standards: IEC
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 2
- Terminal Type: Lug terminals
- Power Loss: at Rated Operating Conditions per Pole 4 W
- Mounting Type: Normal
- Handle Type: Direct
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Special Functions: No
- Operating Mode: Front Operated
- EAN: 6417019576381
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 160 mm
- Package Level 1 Height: 96 mm
- Package Level 1 Length: 236 mm
- Package Level 1 Gross Weight: 1.4 kg
- Package Level 1 EAN: 6417019576381
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 160 A
- Earthing Switch Type: No Additional Type
- IIT Publishing Status: Level 0 - Information enabled
- Includes: Handle and Shaft
- Pollution Degree: 3
- Rated Operational Current DC-21B (I<sub>e</sub>): (1000 V) 160 A
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 5 kiloampere rms
- Data Sheet, Technical Information: 1SCC301021C0201
- Declaration of Conformity - CE: 1SCC301201D0201
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OTDC160E02K . Santa Clara Systems carries 36,881 items from ABB.
- Including A Black Test-Off-On Plastic Handle And Shaft As Standard. The Handle Is Padlockable In The Off-Position.
